R-26T Gun 2026 ★New Release
Latest model in the Scotch Gun series
Maintenance interval extended to once every six months. Features a special wiper seal structure. Improves production line uptime while ensuring full compatibility with the R11T. Sales begin in August 2026.
Unchanging usability, evolving productivity.
The Scotch Gun Series R-26T is the successor to the R-11T model released in 2013. It retains the precise spray characteristics and lightweight body of the R-11T while incorporating a new, specialized wiper seal structure. Maintenance intervals have been extended from once every two weeks to once every six months. This is a long-awaited, innovative model designed to deliver next-generation productivity.
Features
Variations
- R-26T (circulation type)
- R-26T-ML (Non-recirculating type)
Features
- Equipped with a special wiper seal structure (utility model registered)
- Maintenance interval: Once every 6 months (approx. 92% reduction compared to the R11T)
- Same D dimension as R-11T → No re-teaching required
- Fully compatible port locations → Existing piping and robots can be reused as-is.
- Retains the compact and lightweight design (133g / 68.5mm).
Release Information
- On sale starting August 2026.
- Demo units are available for loan. Please contact your sales representative for inquiries.
Ultra-compact spray gun

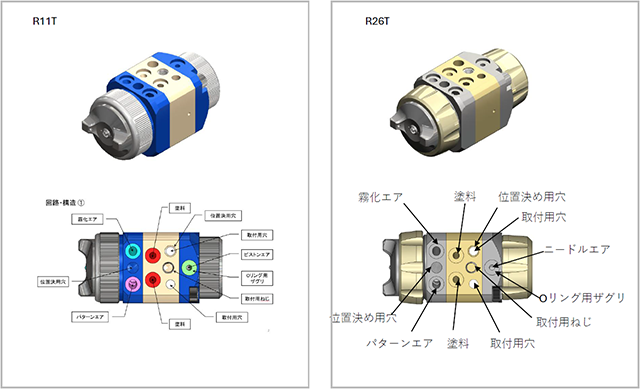

Visual comparison with the R11T
Dimensions and Weight
| Dimensions | 68.5 mm × H 32 mm × D 32 mm |
|---|---|
| Weight | (Main body) 133 g |
| * | R-26T | R-26T-ML |
|---|---|---|
| * | circulating type | Non-circulating type |
| * | Pressure-feed type | - |
| * | Φ1.0mm (Standard specifications) | - |
| * | D01 (Standard specifications) | - |
| Body material | Body A and Body C: A6061 (Gunmetal anodized finish) Body B: PEEK |
- |
