Product Information

Coating robots for System

SOFTBOY PRO coating system

Automatic Smart Phone Mobile Phone Video Camera Body Digital Camera Body
 Robot system for mass-production is to be installed in a continued conveyor line. The peripheral accessories are also suitable for mass-production so that mass-production with the lowest running-cost are achieved.

SOFTBOY PRO Coating System to win the cost competition

Smart phone coating system by LINE DANCER, SOFTBOY PRO, and DRAGON LINE (Video)

Adobe Flash Player を取得 ビデオの表示には、Adobe Flash Player の最新バージョンが必要です。

Smart phone coating system by LINE DANCER, SOFTBOY PRO, and DRAGON LINE (Video)
Smart phone coating system by LINE DANCER, SOFTBOY PRO, and DRAGON LINE (Video)

 SOFTBOY PRO coating system which TAKUBO ENGINEERING proposes will realize a coating production with low cost, low energy consumption and high efficiency by high-grade control technology with the combination of R-technology, robotic revolving technology (as a core), robot, spray gun, syringe pump the paint supply device, handling device and others.

Features of coating robots for system

LINE DANCER 6-gun (Left), SUPE SPINDLE 300C 8-gun (Right)
LINE DANCER 6-gun (Left), SUPE SPINDLE 300C 8-gun (Right)

 The robot can be installed on a continued conveyor line. It is a coating robot system for mass-production to aim the lowest running cost and the great efficiency.

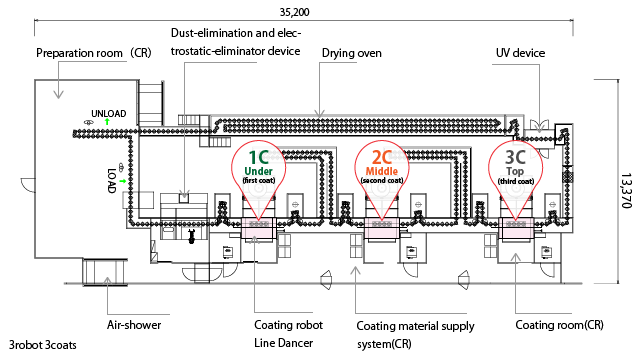

Example of system, 3R3C means 3 coatings by 3 robots

3R3C: 3 robots are managing 1–coat each.

  • The coating robot is SOFTBOY PRO M-type Super Spindle 300C or LINE DANCER for use.
  • The purposes of this coating system for mass-production are to reduce the paint consumption and to realize a high quality production with a low running cost.
  • It is suitable for super-luster coating like Piano touch

Systematization with DRAGON LINE

DRAGON LINE with accumulation mechanism
DRAGON LINE with accumulation mechanism

DRAGON LINE to reduce energy cost

  • Accumulation mechanism set at the both sides of the booth will stop the line only in the booth.
  • Stop of the line in the coating booth makes the booth width shorter because the robot does not need to follow.
  • Smaller booth causes a much smaller energy cost for air supply/exhaust.
  • DRAGON LINE, the conveyor line with the accumulation mechanism will make a big influence on the coating cost.

Example of system, 1R3C means 3 coatings by 1 robots

Example of 3-coat system for outside door mirror, SOFTBOY PRO W-turn 8-top type for use
Example of 3-coat system for outside door mirror, SOFTBOY PRO W-turn 8-top type for use

1R3C: System to make a 3-coat production by 1 robot

  • In this coating robot, W-turn type with high-accuracy is used for the turn table, and Balance arm type robot is used for the transfer handling. Only one robot can make a 3-coat production while coating and setting repeatedly.
  • Adopting the color-change system and the high-speed cleaning system, you can make color-change and cleaning operations very quickly, and also the paint consumption volume becomes the minimum as well as waste cleaning solvent is deleted.
  • It is suitable for a coating with multi-kind and small volume production or with a lot of color-change.
  • The conveyor line is not polluted by paint because the line is separated from the coating robot.
  • Compact coating production facility is realized.
  • SOFTBOY PRO W-turn type is a high-versatility robot so that it can be used not only for full- automation system but also for simple-substance as a batch type.

List of Coating System

Coating robotLink to product page

Line-up of the coating systems which have some excellent results

OptionsLink to product page

Release date: September 9, 2016
