The syringe pump is now ready for implementation in your existing coating systems.

The “syringe pump” has been renewed as the “syringe pump system.”

The syringe pump has been redesigned to make it easier to install in existing coating systems.
The Syringe Pump System is a redesigned version of the precision paint‑metering device originally developed for coating systems such as LINE DANCER and SWAN robots. It features a circulation circuit that returns paint from the spray‑gun tip
The system improves paint supply performance in general coating lines and enables management of paint consumption.

Syringe pump system - Gun-tip circulation type

It can be introduced into existing coating systems.

To improve coating quality, it is important to review paint usage. The syringe pump calculates the required amount of paint and delivers only what is needed to reduce waste.
The “Syringe Pump System” is specially designed as a paint‑supply unit for coating robots, spindle systems, and similar equipment.

With today’s high‑performance and increasingly expensive paints, even 1 cc must not be wasted. From an environmental standpoint, such as reducing industrial waste, we introduce this cost‑saving coating technology to a wide range of users.

Product Overview

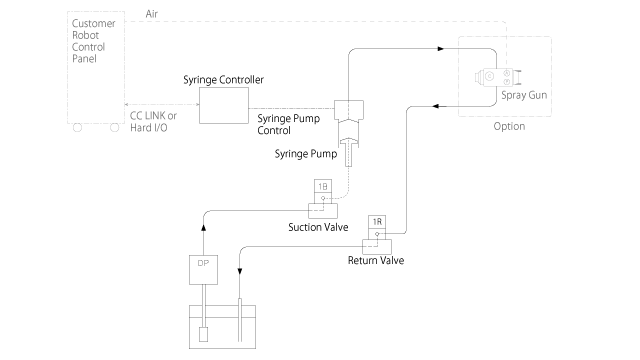

The Gun‑Tip Circulation Syringe Pump System is designed with a circuit that allows paint to return from the spray‑gun tip.
This reduces unnecessary paint consumption and lowers industrial‑waste costs.
It is easy to install and helps improve coating costs in existing coating systems.

The syringe pump, equipped with a compact explosion‑proof motor, can support up to eight spray guns (optional). It is suitable for multi‑gun robot systems, high‑volume production robots, and systems with frequent color changes.

Features

• Circuit design that allows paint to return from the gun tip
• Reduces unnecessary paint consumption
• Accurate paint supply to the spray gun
• Dedicated controller manages in 1‑cc units
• Safe and reliable explosion‑proof paint supply unit
• Compatible with high‑speed cleaning “Quick Cleaner” (optional)
• * A return‑type spray gun is required
• * Connectable to existing control panels via CC‑Link, etc. (optional)
• * Scotch Gun installation available (optional)

Compact & Easy‑Maintenance

The syringe pump system, equipped with a dedicated controller, has a compact design and is easy to install.
The syringe pump itself has a simple structure, making cleaning and maintenance easy. The special coating inside the cylinder enhances cleaning performance.

• Built‑in original explosion‑proof motor ensures safety
• Compact syringe pump using a small motor
• The dedicated controller allows discharge adjustment in 1‑cc increments

[Note] The design of the Gun‑Tip Circulation Syringe Pump System is subject to change.

Workability Booster: Quick Cleaner (Optional)

The Quick Cleaner is a high‑pressure cleaning tank that rapidly cleans paint hoses and the inside of the pump.
It greatly reduces cleaning and maintenance time required for color changes and model changes, improving work efficiency.

Quick Cleaner

• Quickly cleans paint hoses and pump in the paint circuit
• Significantly shortens cleaning and maintenance time
• Suitable for paints with aggregates, pearl, metallic
• Eliminates unnecessary paint disposal and greatly reduces industrial‑waste costs

External dimensions

External dimensions

Documents

The data is available for download.

 Syringe Pump System Introduction Catalog（シリンジポンプ導入編06-02A　4p_4E.pdf：3MB）

Specification

Syringe pump system - Gun-tip circulation type

Options / Related Products

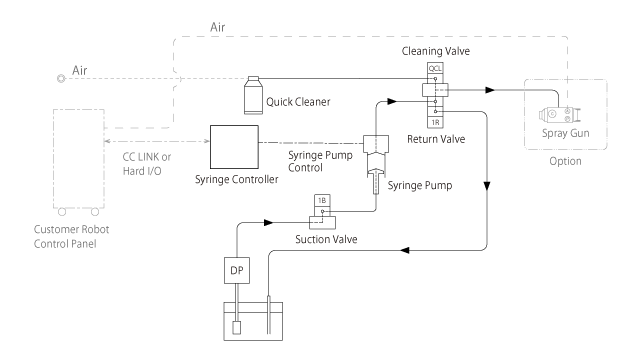

CCV circulation type

This circulates paint between the tank and the valve.

One-cup type

The one-cup system and syringe pump are integrated into a single unit.
