One-cup type(Syringe pump system)
Standard model / sold separately
This is now ready for implementation in your existing coating systems.
The One‑Cup Syringe Pump System supplies paint using a one‑cup method, setting only the required amount. It is ideal for small‑lot, multi‑color production and frequent color changes, as well as test coating and sample panel preparation.
Syringe pump system - One-cup type
Easy Installation
The One‑Cup Syringe Pump System uses a very simple circuit and comes as a complete packaged unit.
It can be easily installed into your existing coating system and supports robot coating systems and spindle coating systems.
* Note: Prior confirmation is required for connection to existing control panels (optional).
* Note: Some paints may not be compatible (e.g., powder coatings). Please consult us in advance.
One‑Cup Design for Better Workability
The One‑Cup Syringe Pump System is ideal when paint usage is limited or for small‑lot production. It also reduces operator workload thanks to easy paint setup and simplified cleaning and maintenance.
Features
- Easy paint setup using dedicated cups
- Special coating enables easy cleaning
- Simple structure reduces maintenance workload
- Quick Cleaner provides high‑speed circuit cleaning for fast color change
Explosion‑Proof Motor for Safe Operation
Compact explosion‑proof motor allows safe use in paint‑prep rooms and coating booths.
One‑Cup System
Paint is set in a small cup instead of a tank, reducing waste and ideal for low‑volume coating.
Easy Installation
Simple packaged circuit enables easy installation into existing robot and spindle coating systems.
Simple Control
Comes with a dedicated controller; touch panel and top‑mounted switch box allow easy operation.
Precise Paint Control

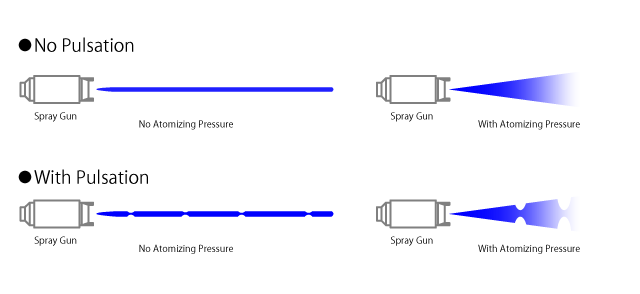

Accurate, pulse‑free paint delivery to the spray gun. 1‑cc digital setting minimizes waste and reduces coating loss.
Standalone Model Now Available

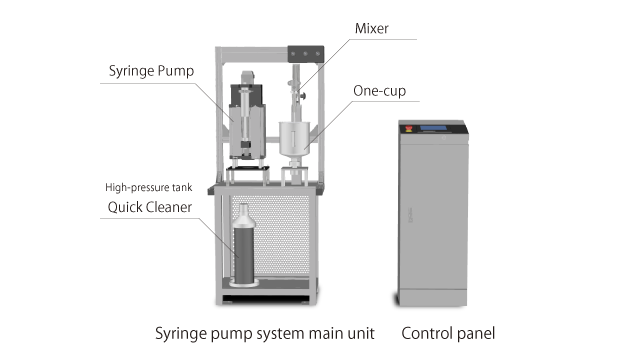

System Overview
Redesigned from the line‑dancer/SWAN robot version with a dedicated controller, now sold as a standalone system.

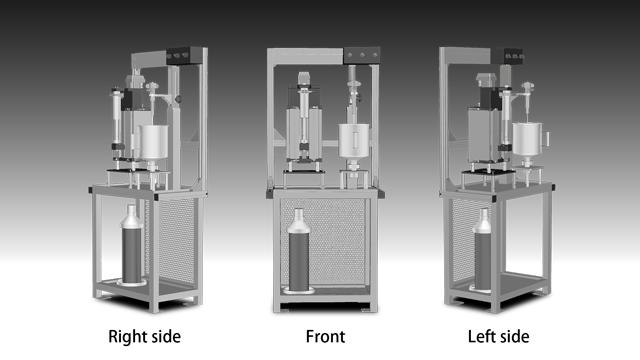

Syringe pump system - One-cup type
External dimensions
| Dimensions | 680 mm × H 1553 mm × D 390 mm |
|---|
The data is available for download.

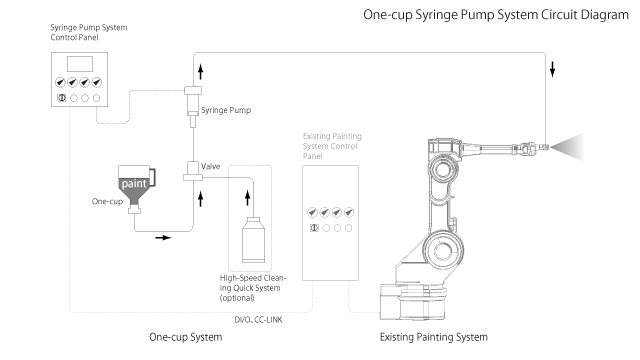

Circuit Diagram : One-cup type（One-cup Syringe Pump System Circuit Diagram.pdf：644KB）
| Number of syringe | 1 | |
|---|---|---|
| Capacity of syringe | 100cc | |
| Syringe material | SUS304 + Special Coating | |
| Drive motor | 200W Explosion-Proof AC Servo Motor | |
| Drive Amplifier Model | VLPSX-008P2-SBA-0301 | |
| Explosion-proof type | Complies with IEC 60079-0 General Provisions and IEC 60079-1 Explosion-Proof Specification | |
| Discharge volume | 30～150cc/min | |
| Drive method | Ball Screw | |
| Electric capacity | 200V AC (3-phase), 0.5kVA |
The data is available for download.
Syringe Pump System Introduction Catalog（シリンジポンプ導入編06-02A 4p_4E.pdf：3MB）
シリンジポンプシステム導入編 A4-2p リーフレット（シリンジポンプ導入編06-02 2p_4 A4ペラE.pdf：2MB）
