Super Spindle 300C New Mobile Phone Handset Coating System
A costing system that employs R technology to achieve a high cost-performance ratio.
SUPER SPINDLE 300C
TAKUBO's exclusive new revolving coating technology, which we call "R technology," has been further enhanced. This new model will become the standard in its class.Development Goals
High finishing quality and compatibility with pearl and metallic coatings (UV) for mobile phone handsets while reducing energy consumption as far as possible.
Main Specifications

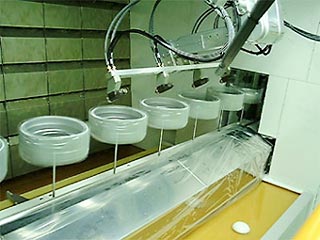

- Work is mounted on circular revolving platform 200 mm in diameter, and coating is performed by 4 guns.
- The coating rotation speed has been increased to 200 rpm.
- Coating operation is synchronized with conveyor movement.
- New precision fixed volume coating supply device.
- Class 100,000 clean room.
Main Features
- Approximately 18% higher production volume compared with previous model (Super Spindle).
- Smaller installation space.
- Reduced consumption paint thinner for cleaning.
- Stable product quality.
- Support for 2 or 3 coats.
- Coating data is compatible with other systems.
- Data can be shared with Data-Pro* miniature robot. * The Data-Pro is a miniature robot designed specifically for generating coating data. It was developed to allow verification of coating methods and confirmation of teaching costs.
Production Volume Comparison
Installation Space
SUPER SPINDLE 300C Coating Robot
Precision Fixed Volume Coating Supply Device
Automated Dust Eliminator
Automated Static Charge Eliminator
